A Short Tutorial
on Making Your Own HO Wheels
by Pat Dennis 2011, 2014
produced
for reference related to the Mark II Project
(back to the MKII project page)

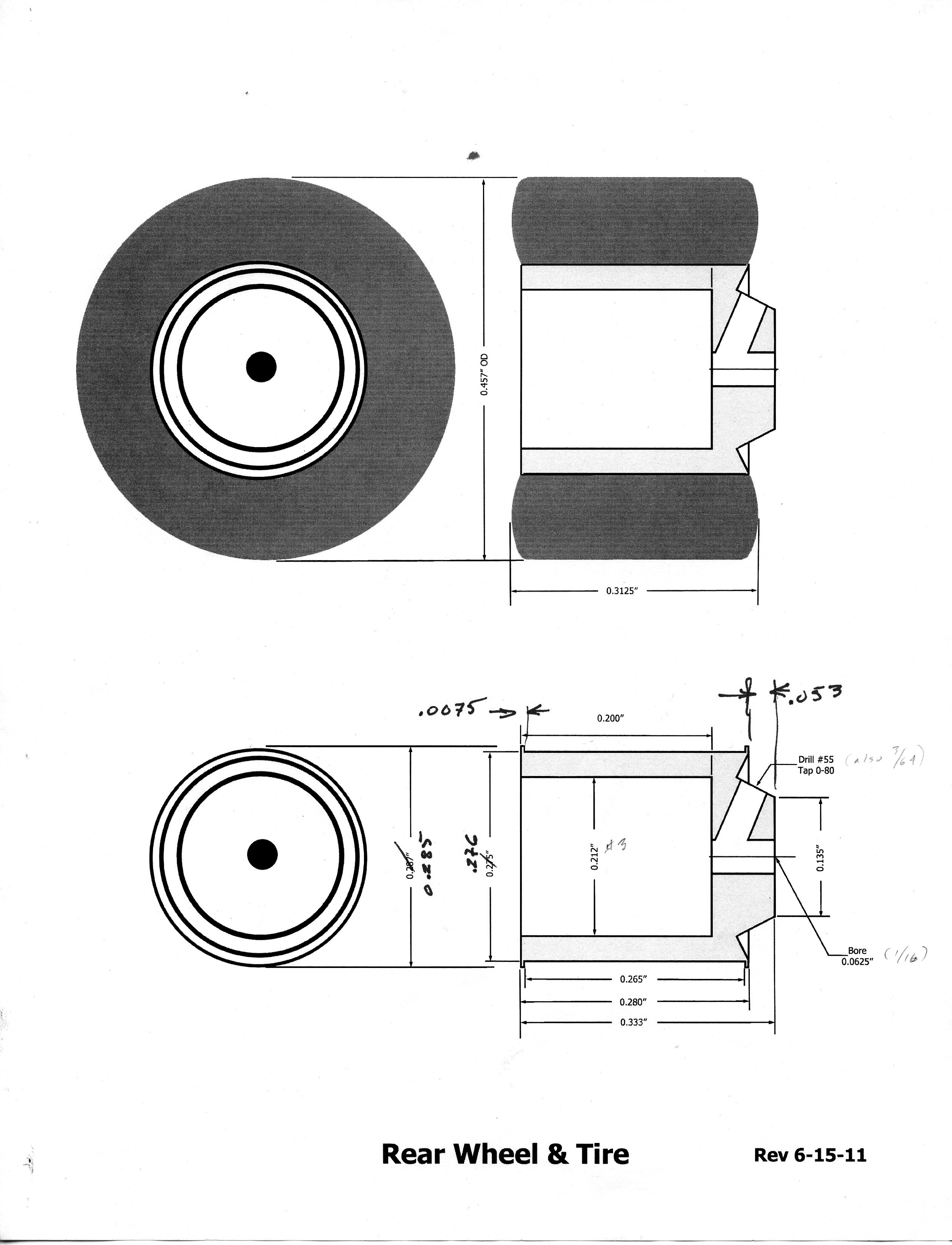

Step 1. Determine the dimensions that are required for your application, and
then create a dimensioned drawing.

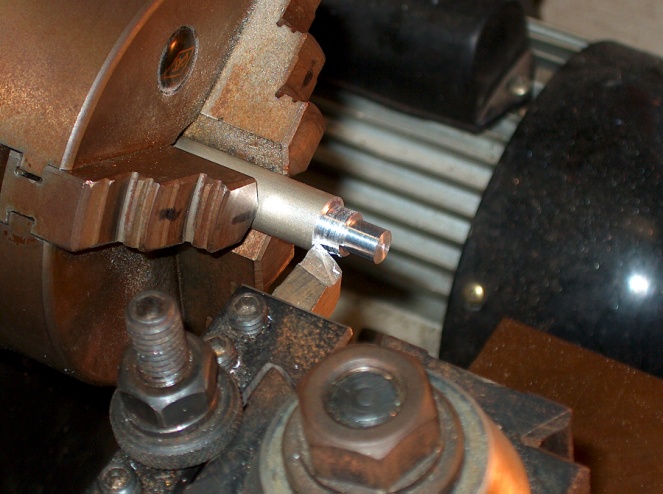

Step 2. Cut aluminum stock to OD of flanges.

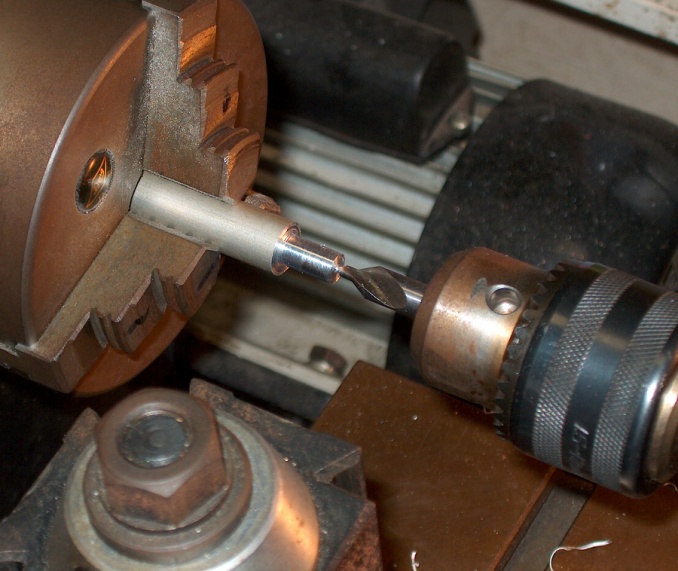

Step 3. Drill Pilot for ID Bore

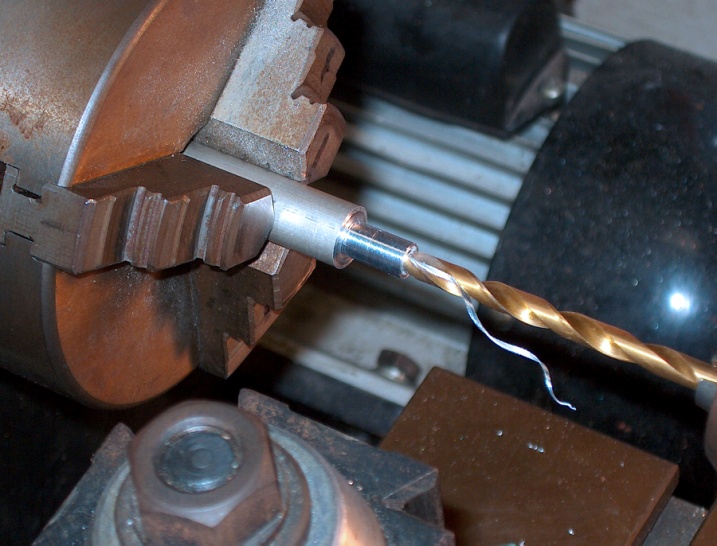

Step 4. Bore ID.

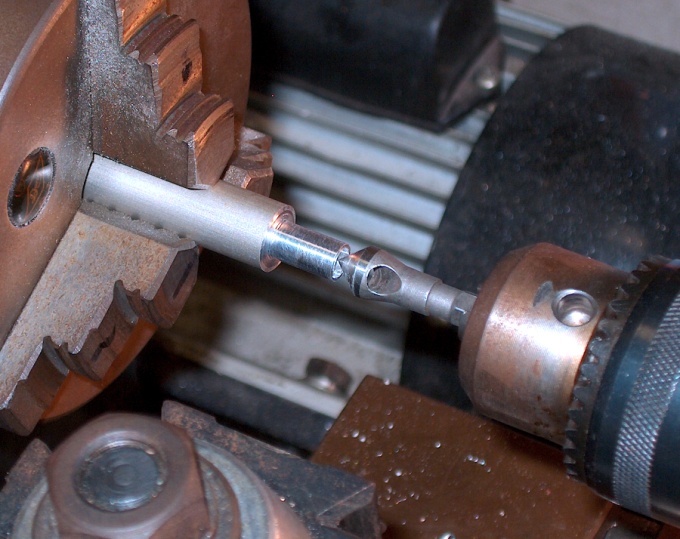

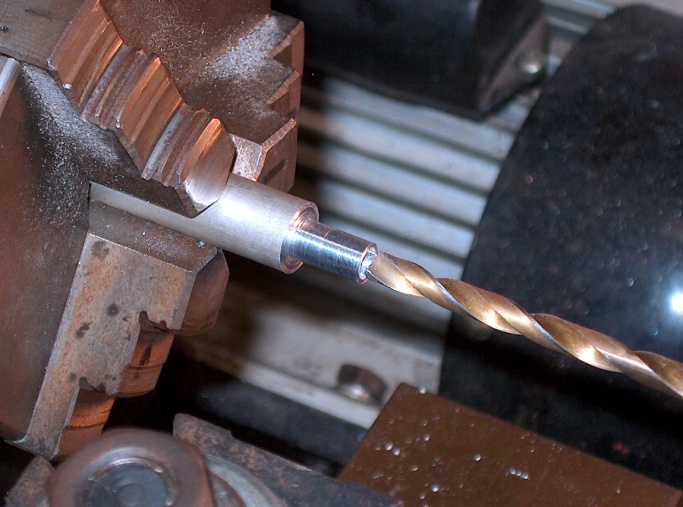

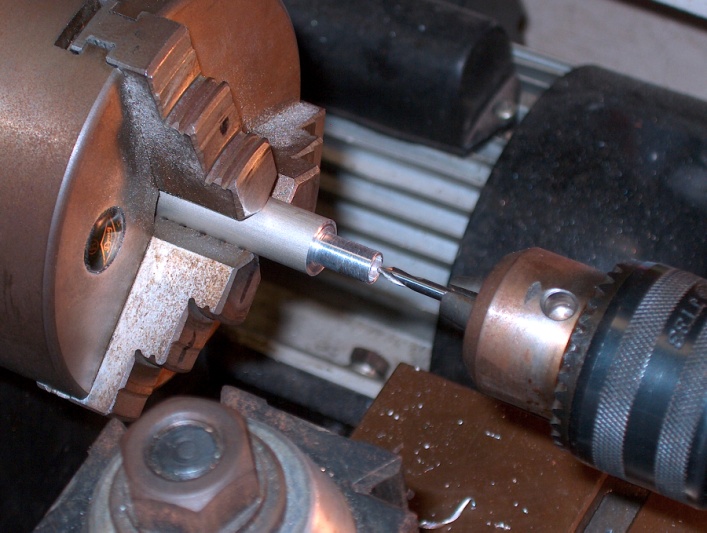

Step 5. Drill Pilot for Axle Hole.
Step 6. Bore Axle Hole.
Step 7. Cut Bottom of Bore.

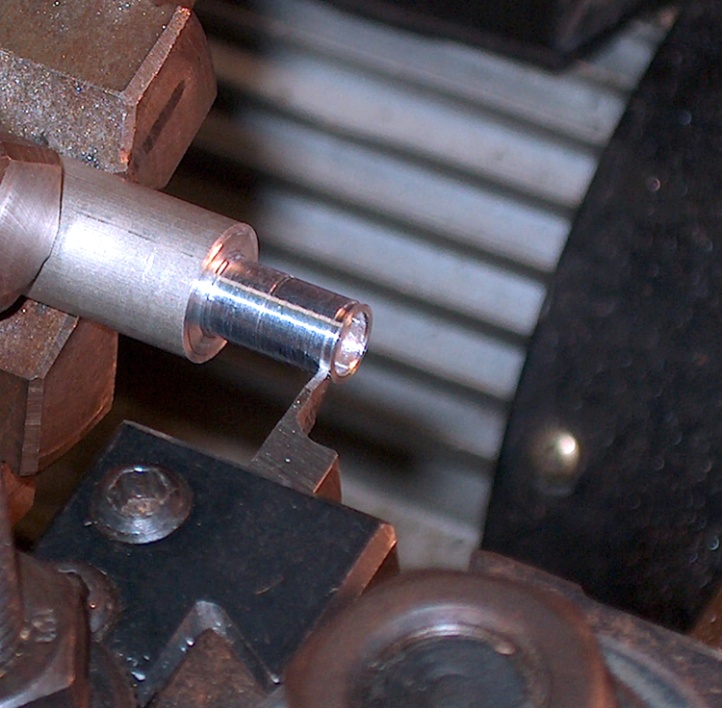

Step 8. Radius Face.

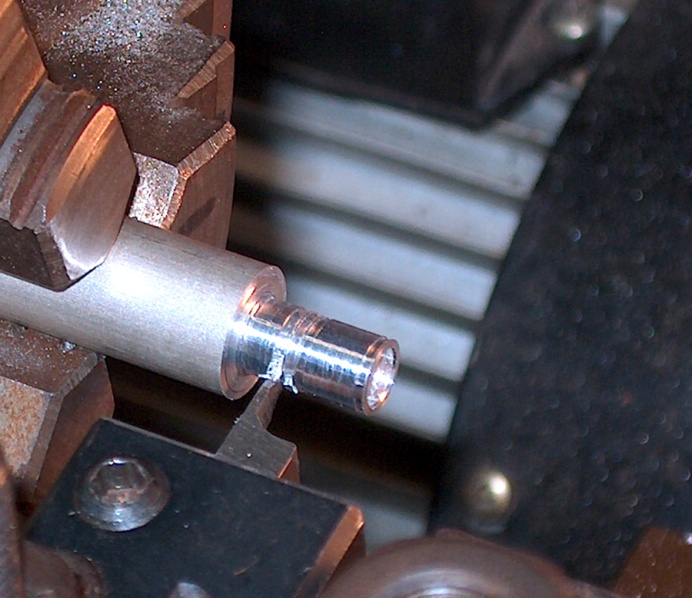

Step 9. Cut Front Flange
Step 10. Cut Rear Flange.
Step 11. Cut Back Edge.

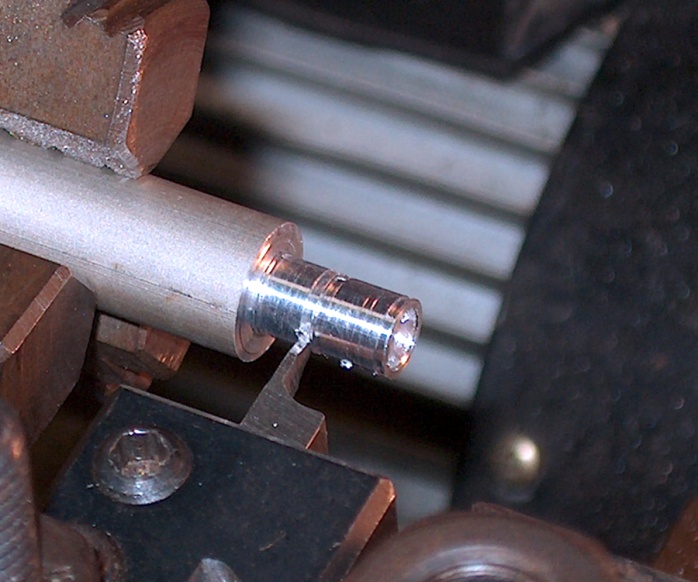

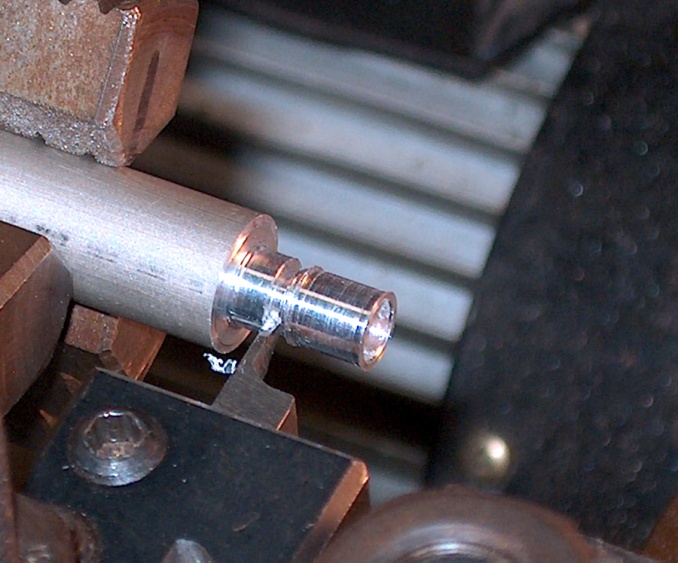

Step 12. Cut Parting Line

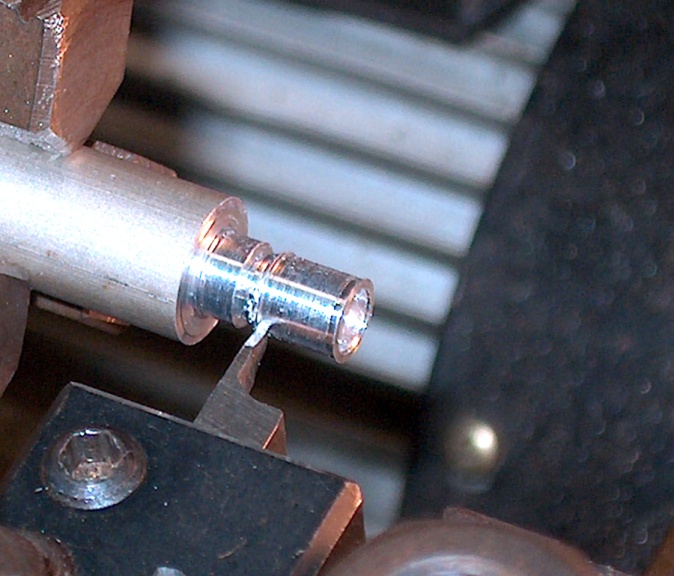

Step 13. Machine Tire Depression.
Step 14. Part Wheel

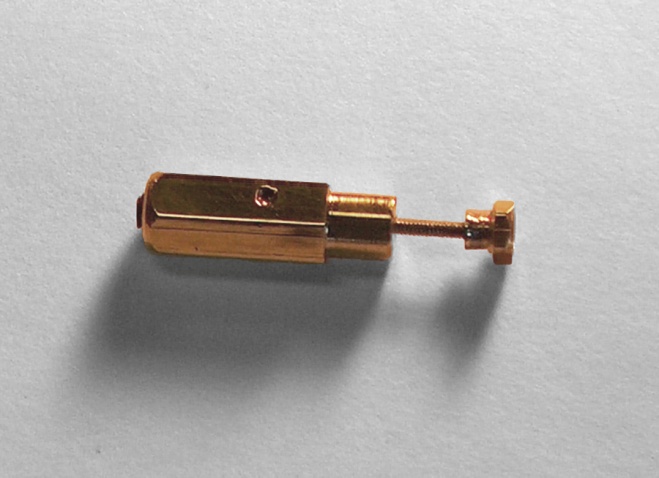

Step 15.Machine Fixture to Cut Rear Flange

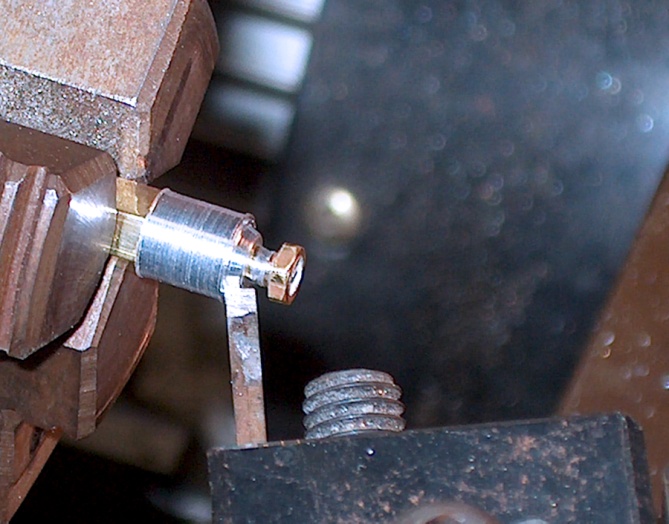

Step 16. Machine Set-Screw Flange.

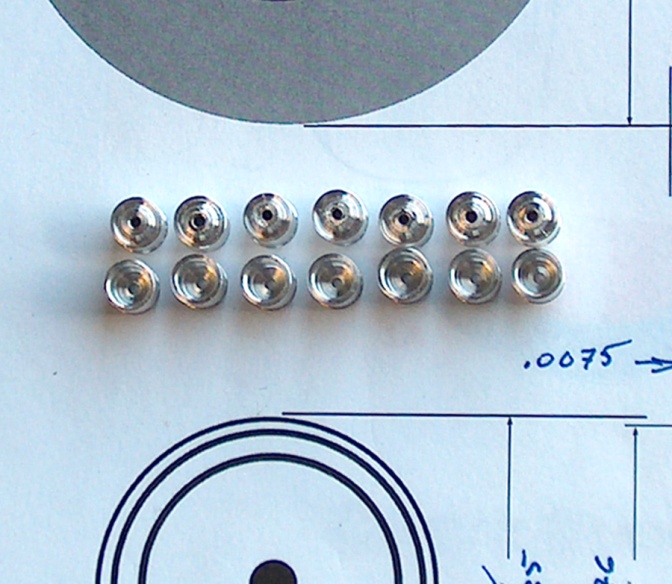

Finished Wheels.
